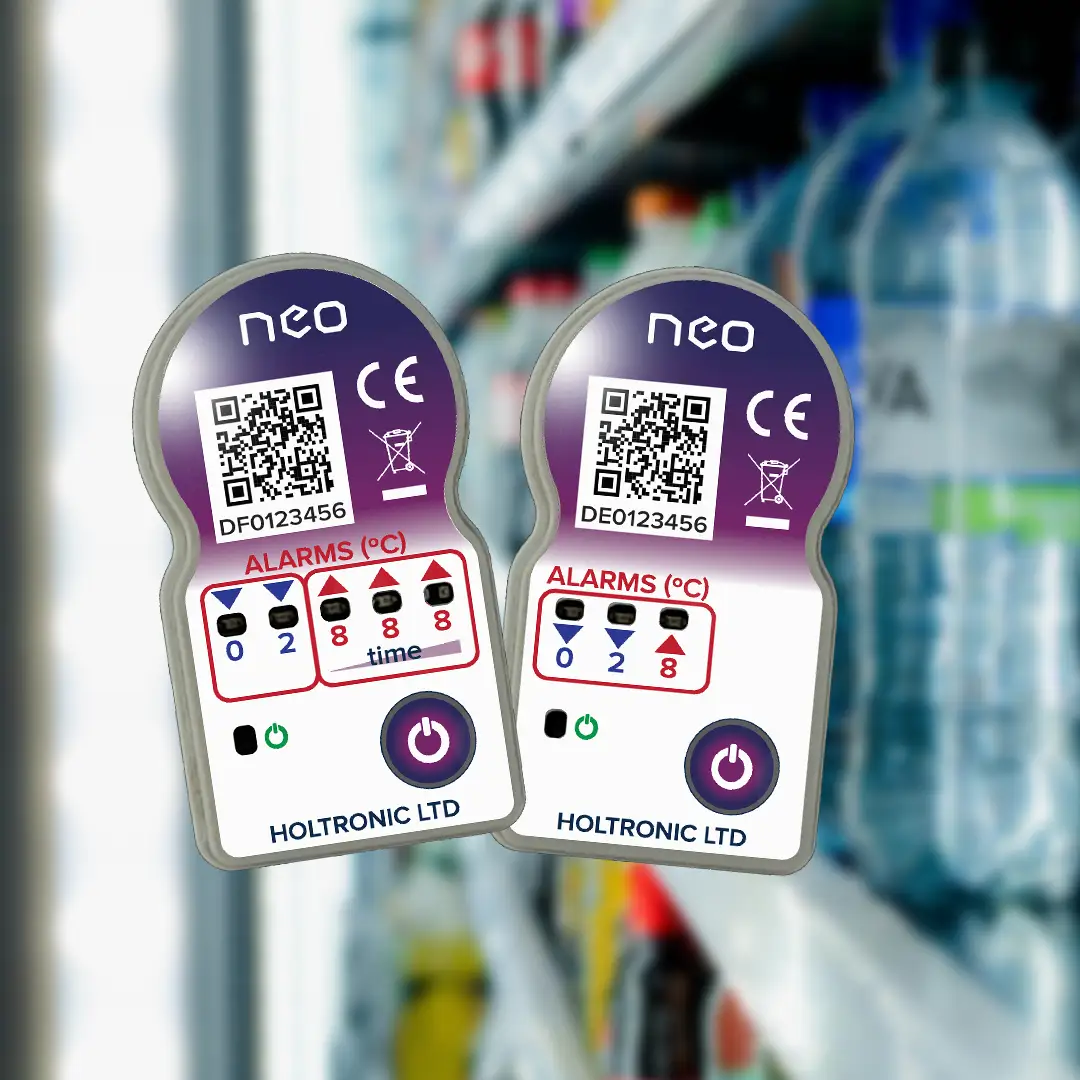

The neo® Penta is a compact, single-use electronic temperature indicator built to flag up to five distinct temperature events on one device. It starts recording the moment it’s activated, samples continuously throughout the journey, and lights an irreversible LED the instant any defined threshold is crossed. A permanent, tamper-evident record of temperature abuse that travels with the product from dispatch to delivery.
Every neo® Penta shares the same rugged housing, CR2032 battery, IP54 rating and internal NTC sensor. What changes between models is which temperature bands each LED is tuned to watch. Pick the variant that matches your product’s critical limits.

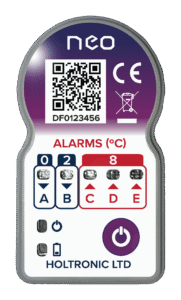

Single-use electronic temperature indicator designed for refrigerated cold-chain monitoring between 2°C and 8°C.
Ideal for pharmaceuticals, vaccines and chilled goods, with five configurable temperature and time alarms providing clear, irreversible LED indication of temperature excursions.

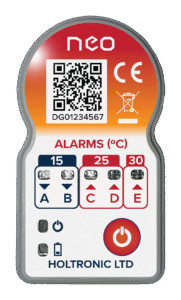

Single-use electronic temperature indicator designed for controlled ambient monitoring between 15°C and 25°C.
Ideal for pharmaceuticals and temperature-sensitive products, with configurable LED alarms indicating exposure below or above the specified temperature limits.

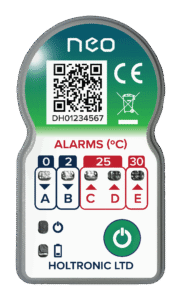

Single-use electronic temperature indicator designed to monitor both low- and high-temperature excursions.
Ideal for temperature-sensitive shipments requiring protection against freezing and excessive heat, with irreversible LED alarms indicating when configured limits are exceeded.
Each unit ships 100% tested with its own unique serial number, so every indicator is traceable back to an individual monitoring event.
Choose your indicator below to read the full specifications.
| Specifications | Details |
|---|---|
Type | Single use, non-reversable |
Size | 24.6mm x 44.5mm x 5.8mm ; 6g |
Low Temp Alarms | <0°C single event, 10 min · <2°C cumulative, 30 min |
High Temp Alarms | >8°C cumulative, 5 min · 30 min · 60 min |
Housing | Rigid Plastic |
Activation | Hold button for 1.5 seconds ±0.5 sec |
Sensor | Internal NTC |
Start Delay | 30 minutes ± 100ms |
Active Life | 9 months / 270 days |
Shelf Life | 3 years |
Environment | IP54 |
Temperature Accuracy | 0°C ±0.5°C · 2°C ±0.5°C · 8°C ±0.5°C |
Time Accuracy | ±15ms over 5min · ±100ms over 30min |
Sample Period | 24 sec |
Press and hold the button for 1.5 seconds until the green “Power on” LED flashes three times. Once active, the
Power LED continues flashing every 8 seconds to confirm the unit is monitoring. DF gives a 30-minute start delay before recording begins, so handling temperature during packing doesn’t trigger a false alarm; DG and DH begin monitoring immediately.
Fix the indicator to the product, inner pack or outer carton and send it on its way. It needs no app, reader or
network connection — it samples temperature independently every 24 seconds for the length of the journey.
Press the button at any point to interrogate the LEDs and see the current status without disturbing the
monitoring cycle.
The moment a threshold is crossed for its set duration, the matching lettered LED (A–E) lights and flashes every 8 seconds. For example, DF’s “0” LED flags a single 10-minute dip below freezing, while its “8” LED flags a cumulative heat excursion above 8°C. Because the neo® Penta is non-reversible, once an LED activates it stays lit for the rest of the device’s active life. Nobody downstream can clear or reset it.
With the full LED record visible at a glance, receiving teams, drivers or QA staff can make an immediate
accept/reject decision on arrival. No equipment or software needed to interpret the result.
The Holtronic Data Viewer runs in a compatible web browser. Access remains subject to the organisation’s browser, USB and download policies.
In industries where temperature control is critical, such as cold chain logistics, pharmaceuticals, and food storage, maintaining product integrity can be challenging. The neo Penta offers a reliable solution by providing precise monitoring and clear alerts for temperature breaches.
neo Penta is a single-use electronic temperature indicator designed to monitor and alert users to temperature breaches at specific thresholds. It is ideal for cold chain logistics, pharmaceuticals, and food storage.
neo Penta uses LED indicators to signal when temperatures drop below 0°C or 2°C, or rise above 8°C, after a 10-minute start delay. The device continuously monitors conditions and provides clear, irreversible alerts.
Hold the button for 1.5 seconds until the green Power LED flashes three times. That confirms activation and starts the countdown to monitoring immediately for DG and DH, or after a 30-minute start delay for DF.
It comes down to which temperature band each is tuned to. DF watches for a freeze event below 0°C and a heat excursion above 8°C — suited to 2–8°C pharmaceutical and chilled-goods cold chains. DG watches for excursions below 15°C and above 25/30°C, suited to ambient and controlled-room-temperature products. DH combines both a low floor (0°C/2°C) and a high ceiling (25°C/30°C) on one device.
Up to five separate LED alarms per unit, each tied to its own threshold and duration — some single-event, some cumulative — so a single device can flag several different kinds of excursion across one journey.
Every 24 seconds throughout the monitoring period, giving a continuous, high-resolution picture of the conditions the product has experienced.
Yes. Pressing the button at any time makes the LEDs flash their current status without interrupting or resetting the recording in progress.
A Battery Warning LED flashes every 8 seconds when the button is pressed, letting you know the unit is past its
monitoring window and should be retired. Unlike Holtronic’s resettable models, the neo® Penta is single-use and
isn’t designed to be reset for another cycle.
Scan the QR code printed on the front of the indicator. It links straight through to a Holtronic web page where you can view and download that unit’s individual calibration certificate.
Yes. Beyond the standard DF, DG and DH configurations, custom threshold and duration settings can be specified to match your product’s exact requirements. Contact the team to discuss a custom build.
Every model shares the same compact footprint: 24.6mm x 44.5mm x 5.8mm and 6g. Small and light enough to attach directly to individual products, not just outer packaging.
Temperature accuracy is ±0.5°C at each configured threshold, with time accuracy holding to within ±15ms over 5 minutes and tightening further over longer cumulative windows, depending on the model.
Tell us which temperature range fits your product and we’ll get an electronic temperature indicator into your hands.
